Cube Orange+ 80-pin (DF17) pinout for a custom carrier board

Truth_T · July 24, 2026, 1:04am

Hi,

I’m outsourcing a custom carrier board for the Cube Orange+, so I need to
give the designer the 80-pin DF17 pinout.

Is the “The Cube 80-pin DF17 Connector (long term standard)” table on this
page correct and complete for the Orange+?

Thanks!

Truth_T · July 24, 2026, 1:42am

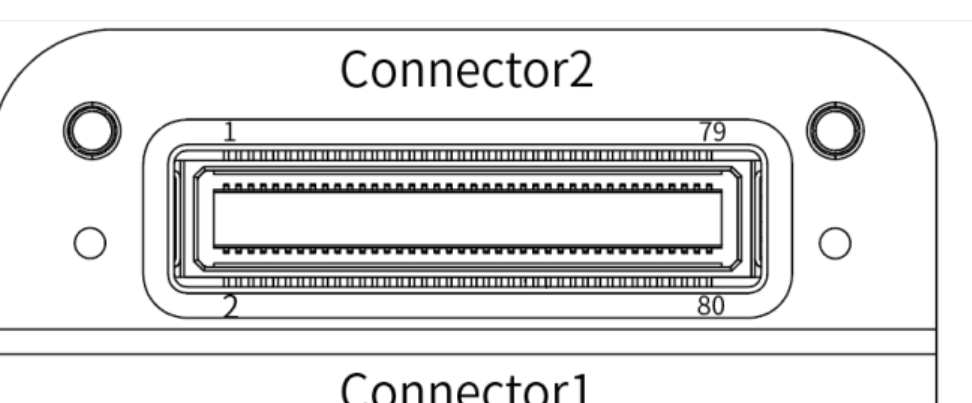

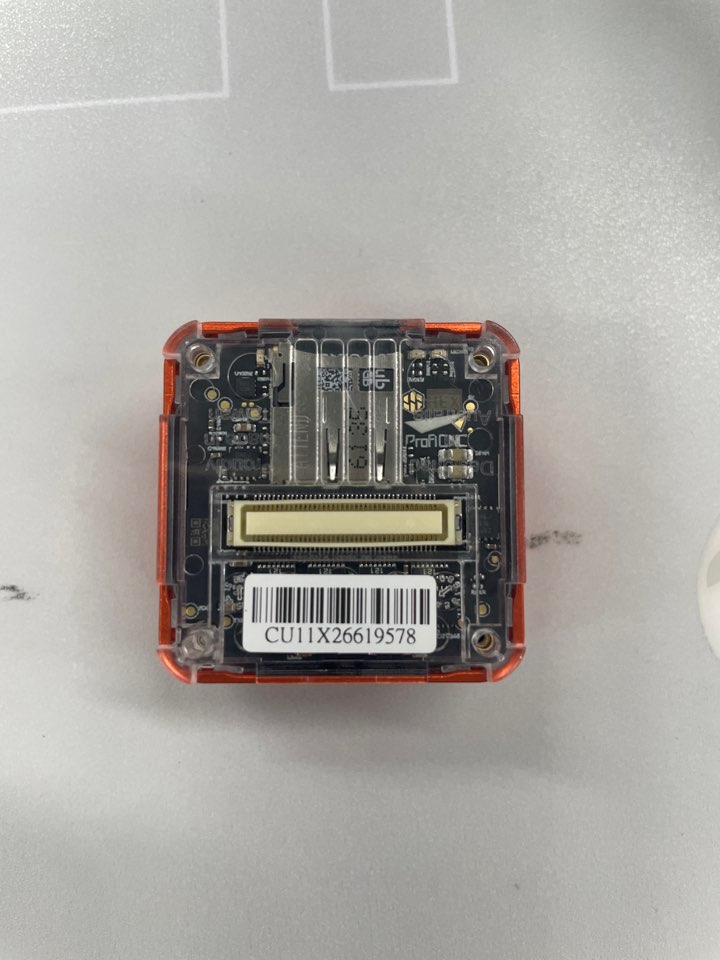

In short, where are pin 1 and pin 80 located on the below picture’s connector?
